RTP Pipe Production Line

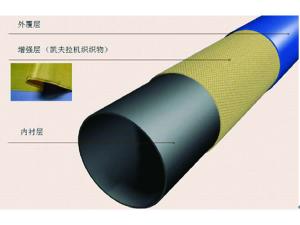

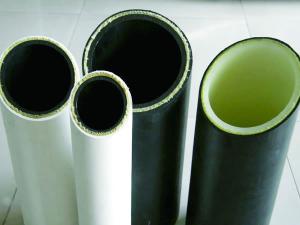

1. RTP

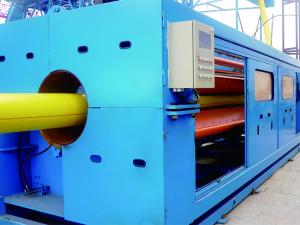

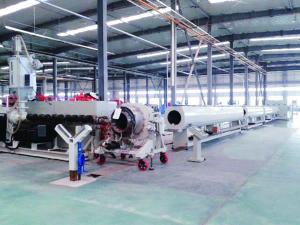

2. SPV inner pipe and outer sheath extrusion line of RTP pipe production line

The extrusion line is employed to extrude inner pipe and outer sheath of RTP.

Specifications
Pipe size Screw dia. Screw L/D Max. extrusion capacity
inch mm - kg/h
≤2 45 33-36 220
2-10 90 33-36 860

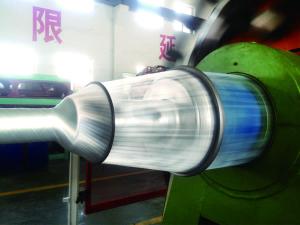

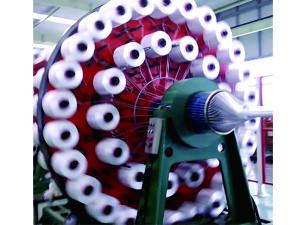

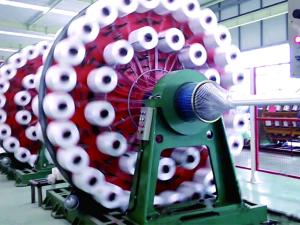

3. Polyester yarn and aramid yarn winding machine

The RBP winding machine of the RTP pipe production line is generally used for winding polyester yarn and aramid yarn as the reinforced layer of RTP.

Specifications
Pipe size Yarn spindle size (OD×ID×Width) Spindle quantity of each bobbin Quantity of bobbin Max. revolving speed of winding head
inch mm - - rpm
≤1.5 280×94×300 28 2 150
2-8 280×94×300 66 4 80
2-8 280×94×300 78 4 80

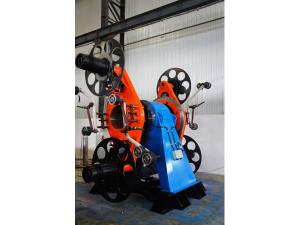

4. RBP reinforced strip winding machine of RTP pipe production line
Specifications
Pipe size Steel wire bobbin size (OD×ID×width) Bobbin quantity of each winding head Max. revolving speed of winding head Winding angle
inch mm - rpm °
2-8 Φ600×Φ80×(30-80) 2 400 50-60

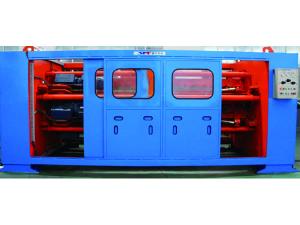

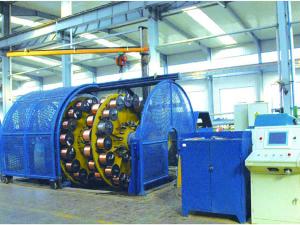

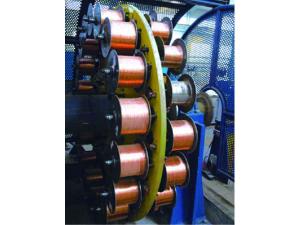

5. RBP steel wire winding machine

It is usually adopted for winding steel wire to reinforce the strength of RTP.

Specifications
Pipe size Steel wire size Steel wire bobbin size(OD×ID×width) Bobbin quantity of each winding head Max. revolving speed of winding head Winding angle
inch mm mm rpm °
2-8 Φ1.6-Φ2.6 280×94×280 144 50 50-60
2-8 Φ1.6-Φ2.6 280×94×280 168 50 50-60
2-8 Φ1.6-Φ2.6 280×94×280 248 40 50-60
